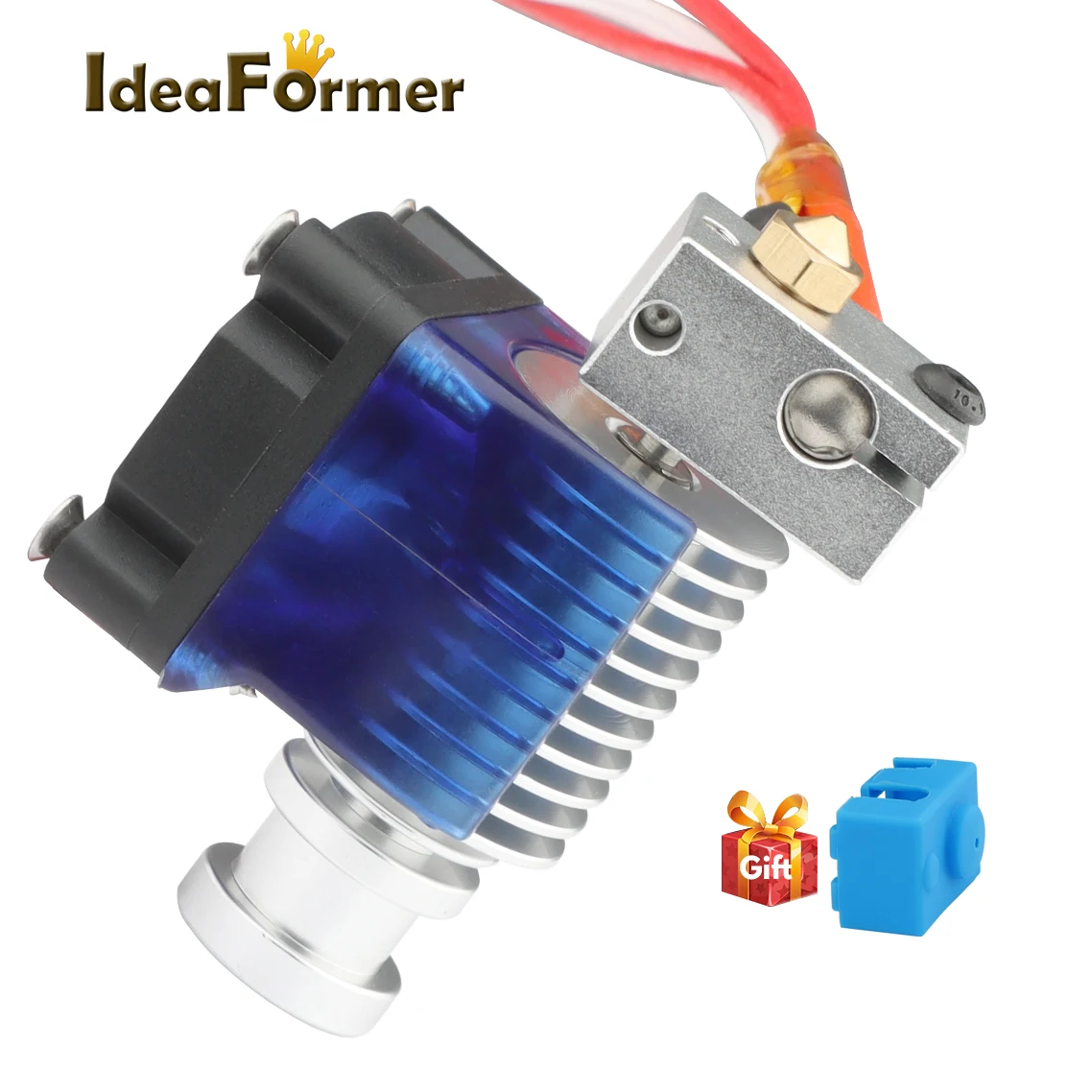

1. Name: Newly upgraded V6 Hotend 1.75mm 12V / 24V Wade direct drive extruder print head short distance E3D PT100 3D printer kit parts
2. Condition: 100% brand new.
3. Heating tube: 12V/24V 40W, cable length: 100cm.
4. Thermistor: NTC100K, black terminal XH2.54, temperature range: -50℃~+350℃, length: 100cm.
5. Heat pipe: M7 thread.
6. Throat: one end is M6 thread, the other end is M7 thread, built-in Teflon tube/all metal/4.1.
7. Nozzle size: 0.4mm / 1.75mm brass nozzle, M6 thread.
8. Heating block: V6-PT100 heating block, size: 23 * 16 * 12mm, material: aluminum.
9. Cooling fan: 12V/24V 30*30*10mm, cable length: 30cm.
10. Fan bracket: V6 type, ABS plastic material, used for 3010 fan.
11. Silicone cover: V6 official type (23mm * 16mm * 12mm), material: silicone, high temperature resistance, to avoid burns.
Option description:
1. 12V or 24V all metal = 12V or 24V is used for 1.75mm filament, the throat does not have a PTFE tube.
2. 12V or 24V with PTFE = 12V or 24V is used for 1.75mm filament, throat with Teflon tube.
3.12V or 24V diameter 4.1mm = throat 4.1mm, without groove for PTFE tube.
Package Including:
1 Set New Upgrade 6 Wade Short distance with or without Fan J-Hot head end Kit.
Gift: 1x V6 Official Type Silicone Case.
